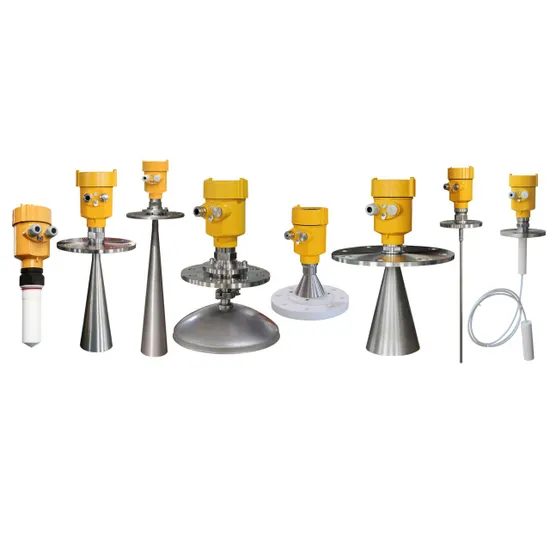

Solid Particles Powder Radar Level Meter Adopted 26g High Frequency Radar Sensor

• Overview
• Product Description
• Product Parameters
• Product Display
• Scenes to be used
• Company Profile

Overview

Basic Info.

Model NO.	RD26G series
Production Process	Integration
Feature	SemiConductor
Material	Stainless Steel
IP Rating	IP67
Certification	CE RoHS FCC SGS ISO
Customized	Customized
Product Name	Atechsensor 26GHz High Frequency Silo Radar Level
Measurement Span	0-70m
Process Connection	Thread or Flanges
Medium Temperature Span	-40~120ºC
Process Pressure	-1bar~3 Bar
Accuracy	±5 mm
Proof Grade	IP67
The Frequency Span	up to 26g Hz
Signal Output	4...20mA/Hart (2 Wires/4 Wires);RS485/Modbus
Product	Water Level Radar
Transport Package	Atech Standard Carton Box
Specification	8.5KG
Trademark	Atech sensor
Origin	China
HS Code	9026100000
Production Capacity	10000

Packaging & Delivery

Package Size35.00cm * 20.00cm * 10.00cm Package Gross Weight5.000kg

Product Description

Introduction

26G radar level gauge is suitable for liquid, paste, granule and block material level and non-contact measurement, suitable for changes in temperature,pressure big; there is an inert gas and volatile.The measurement method of microwave pulse, can work normally in the industrial frequency band range. The beam energy is low, can be installed on all kinds of metal, non-metallic container or pipe, no harm to human body and environment

Operation principle

Radar level sensor antenna of radar level gauge transmits the narrow microwave pulses and downward transmission by the antenna. Microwave is reflected back and received by the antenna system again, when the microwave exposure to the measured medium surface, and transmit the signal to the electronic circuit parts automatically converted into level signal

Features of 26G Radar Level Sensor
1). Antenna size is small, easy to install;
2). Non-contact radar, no wear, no pollution.
3). Almost free from corrosion, foam impact;
4). It is almost free from water vapor in the atmosphere, temperature and pressure changes.
5). Severe dust working environment has little effect on high-frequency level meter.
6). Shorter wave length that has a better reflection on the inclined solid surface.
7). Small beam angle, energy concentration, enhanced echo capabilities meanwhile beneficial to avoid interferences.
8). Measuring blind zone is smaller, it will achieve good results for canister's measuring.
9). High signal to noise ratio, even in the case of fluctuations can obtain better performance.
10). High frequency, it is the best choice for measurement of solids and low dielectric media.

Product Description Product Parameters

Packaging Details	Packaging Details: 26G is standard export packing ,carton packing, water proof, shock resistance or according to customer's requirements
Supply Ability	1000 Piece/Pieces per Month radar water level sensor

Product Display Scenes to be used Company Profile FAQ

1.Q: How long is the delivery?
-- Mostly within 10days

2.Q:Can I get a sample? -- Sure, contact our sales please

3.Q:What is your MOQ? -- 1pcs

4.Q: How about warranty time? -- 12-18months

5.Q: How can I visit your factory? -- Fly to Xi'an air port, it's our pleasure to pick you up.

6.Q:How do you control your quality ? -- We have EPR system .we control from parts, process, testing, packing ,retesting.

7.Q: Do you have test report for each product?

-- Yes,we have test report for each product.

8.Q: Can you customize product for us according to our required specifications?

-- Yes,we are OEM manufacturer,we could customize products according to your required specifications.

Every Sensor will be tested two times before reach you, after that sport test for the third time. Make sure about the quantity.Welcome to order our products
