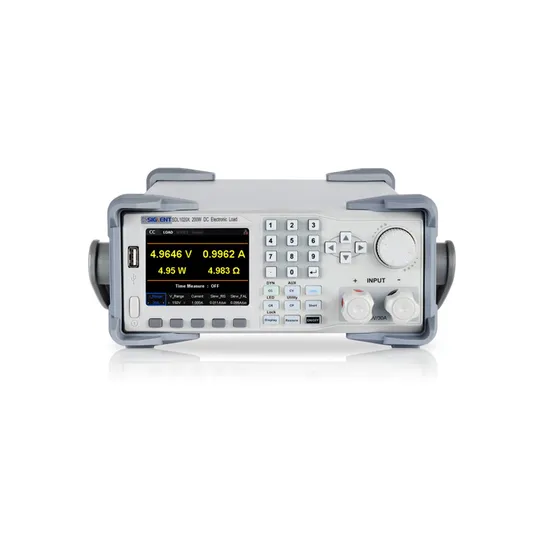

Siglent Sdl1030X 300 W Programmable DC Electronic Loads List Testing

• Overview
• Product Description
• Detailed Photos

Overview

Basic Info.

Model NO.	SDL1030X
DC	150 V/30 a
Total Power	300 W/200 W
Mode	Cc/CV/Cp/Cr
Read Back Resolution	0.1 Mv, 0.1 Ma
Transport Package	Waterproof and Anti-Collision
Specification	SDL1000X/X-E Series
Trademark	Siglent
Origin	China

Packaging & Delivery

Package Size50.00cm * 30.00cm * 20.00cm Package Gross Weight10.000kg

Product Description

Product Description

SDL1000X/X-E Series Programmable DC Electronic Loads

Product Overview

SDL1000X/SDL1000X-E series Programmable DC Electronic Loads have a 3.5 inch TFT-LCD display, a user-friendly interface and superb performance specifications. SDL1020X/SDL1020X-E DC Electronic Loads feature an input range of 150 V/30 A 200 W while the SDL1030X/SDL1030X-E have an input range of 150 V/30 A 300 W. The SDL1000X series leads with measurement resolution of 0.1 mV/0.1 mA and the base SDL1000X-E series resolution is 1 mV/1 mA and adjustable current rise times from 0.001 A/μs~2.5 A/μs. For remote communication and control, the SDL series includes RS232/USB/LAN interface types. SDL1000X electronic loads deliver stability over a wide range of applications and can meet all kinds of testing requirements, including: Power, battery/handheld device design, industry, LED lighting, automotive electronics, and aerospace.

Quick selection :

• SDL1020X (Single channel ): DC 150 V/30 A, total power up to 200 W
• SDL1030X (Single channel ): DC 150 V/30 A, total power up to 300 W
• 4 static modes / Dynamic mode: CC/CV/CR/CP
• CC Dynamic mode: Continuous, pulsed, toggled
• CC Dynamic mode: 25 kHz, CP Dynamic mode: 12.5 kHz, CV Dynamic mode: 0.5 Hz
• Measuring speed of voltage and current: up to 500 kHz
• Adjustable current rise time range: 0.001 A/us~2.5 A/us
• Min. readback resolution: 0.1 mV, 0.1 mA
• Short-circuit, Battery test, CR-LED mode, and factory test functions
• 4-wire SENSE compensation mode function
• List function supports editing as many as 100 steps
• Program function supports 50 groups of steps
• OCP, OVP, OPP, OTP and LRV protection
• External analog control
• Voltage, Current monitoring via 0-10 V
• 3.5 inch TFT-LCD display, capable of displaying multiple parameters and states simultaneously
• Built-in RS232/USB/LAN communication interface, USB-GPIB module (optional)
• Waveform trend chart and easy-to-use file storage and call functions
• Includes PC software: Supports SCPI, LabView driver

Key Features :

• SDL1020X (Single channel ): DC 150 V/30 A, total power up to 200 W
• SDL1030X (Single channel ): DC 150 V/30 A, total power up to 300 W
• 4 static modes / Dynamic mode: CC/CV/CR/CP
• Min. readback resolution: 0.1 mV, 0.1 mA
• Adjustable current rise time range: 0.001 A/us~2.5 A/us

Series	Input voltage/current/power	Mode	CC Dynamic mode frequencyncy	Measuring speed	Current Slew Rate	Min. readback resolutio
SDL1020X-E	150 V/30 A 200 W	CC/CV/CR/CP	25 kHz	up to 500 kHz	0.001 A/us~2.5 A/us	1 mV, 1 mA
SDL1020X	150 V/30 A 200 W	CC/CV/CR/CP	25 kHz	up to 500 kHz	0.001 A/us~2.5 A/us	0.1 mV, 0.1 mA
DL1030X-E	150 V/30 A 300 W	CC/CV/CR/CP	25 kHz	up to 500 kHz	0.001 A/us~2.5 A/us	1 mV, 1 mA
SDL1030X	150 V/30 A 300 W	CC/CV/CR/CP	25 kHz	up to 500 kHz	0.001 A/us~2.5 A/us	0.1 mV, 0.1 mA
